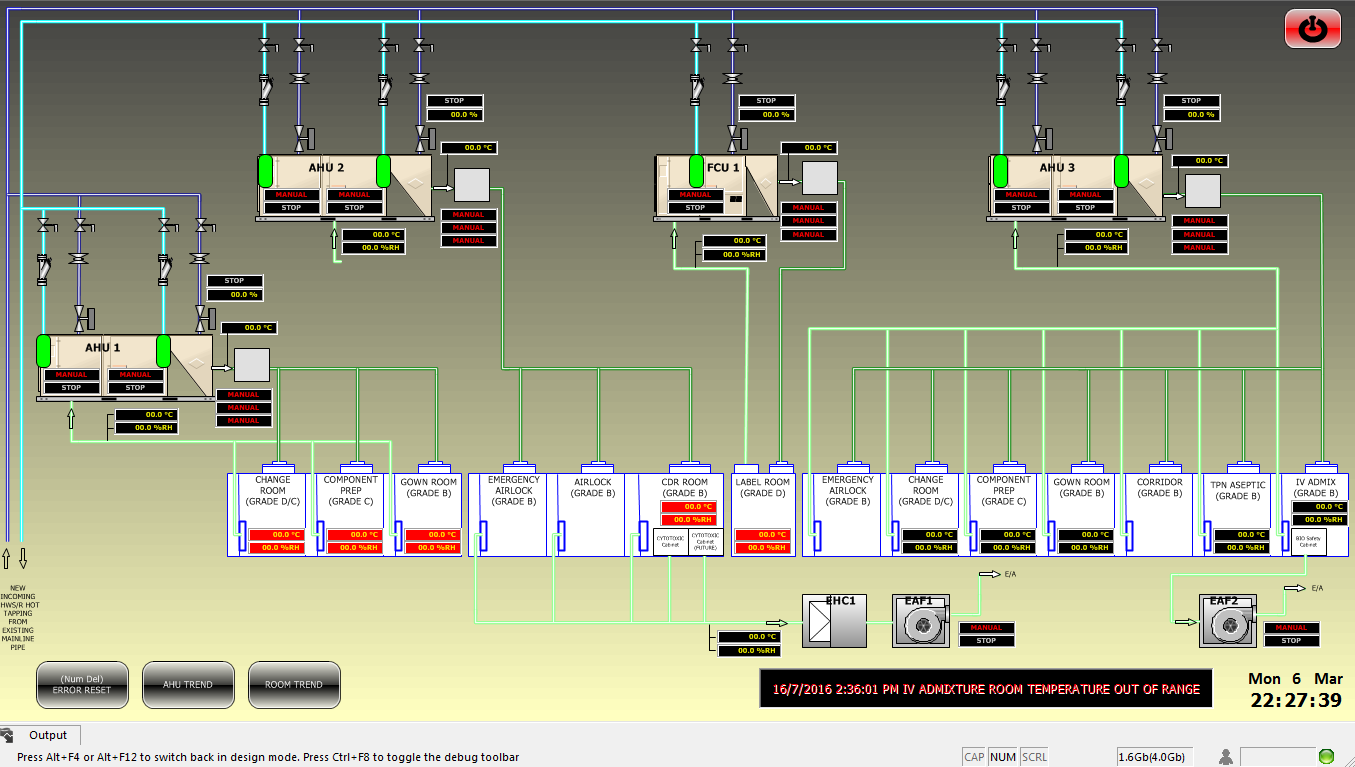

The chilled water from a hospital HVAC system is to be used to provide cooling energy for ten labs.
Pumps and valves along pipeline are modulated according to several temperature and humidity readings by SCADA system.
Each lab requested to have individual TV (50“) to display temperature and humidity.
Solution
PLC with digital, analog and RTD I/Os installed at intermediate heat exchanger rooms. Signal from pumps, valves, RTDs transmitters hard wired to I/Os.
Valves modulated via PID function block. The reference/ target point alternates between temperature and humidity reading depend on situation.
Reading of RTDs are re-transmitted to SCADA via the built in ethernet port, Modbus TCP for data logging purpose.
Chilled Water Control and Monitoringfor Shopping Mall
Task

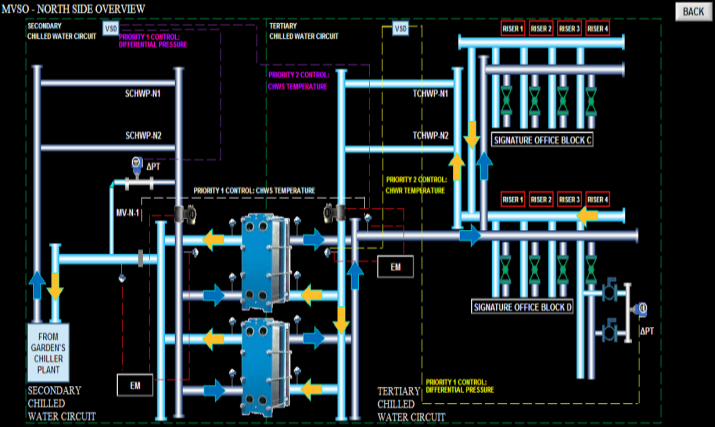

The chilled water from a shopping mall HVAC system is to be used to provide cooling energy to four adjacent office blocks.
Additional pumps added to draw chilled water from existing pipeline to two intermediate heat exchanger plants, and circulate secondary chilled water from these plants to distribution pipeline of each office block.
Pumps and valves along pipeline are modulated according to several temperature and pressure readings, while HMI by SCADA system.
Solution
PLC with digital, analog and RTD I/Os installed at intermediate heat exchanger rooms. Signal from pumps, valves, RTDs and pressure transmitters hard wired to I/Os.
Pumps and valves modulated via PID function block. The reference/ target point alternates between temperature and pressure reading depend on situation.
Reading of RTDs are re-transmitted to HMI/ SCADA via the built in ethernet port, Modbus TCP for data logging purpose.
Tea Extraction System
+
Tea Extraction SystemUpgrade new extraction system to improve production process
Task

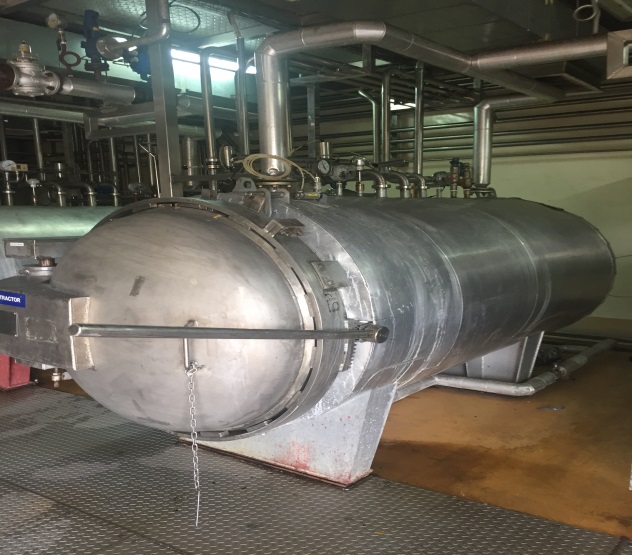

The tea extractor from a well known manufacturer having problem with unstable process control. This caused the production process is slow.
Solution

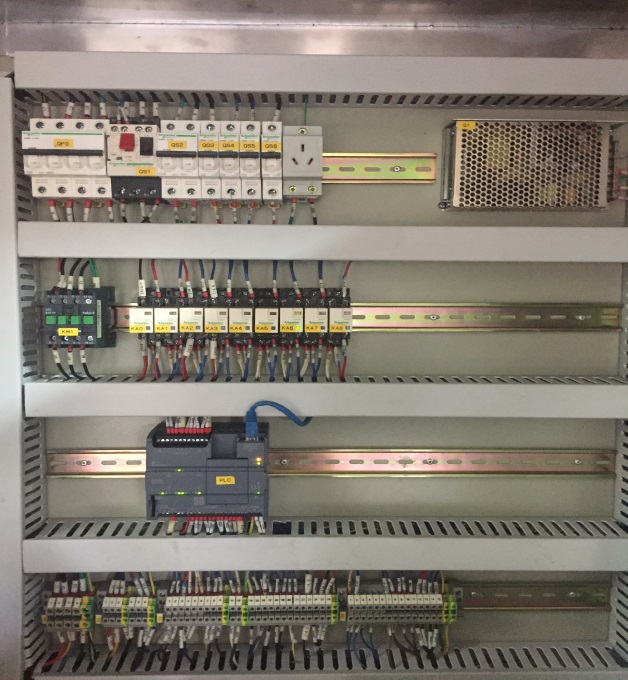

Design with new control system come with stainless steel panel and components.
Customer requested Mechanical to modified and installed new temperature and pressure transmitter (0-10V) connected to Siemens S7-1200 PLC and display to Vipa HMI.
With the control, customer able to view the actual values (real value) and set the set point from HMI.
The system run in sequence with control the steam inlet, water inlet and process timing.
The system also provided safety interlock for door to open during processing.
